Content
In modern coating workshops, production efficiency depends not only on spray equipment, curing ovens, and environmental systems, but also on the way workpieces move between each process. Parts must be transferred from preparation and grinding areas to pretreatment, coating, drying, inspection, storage, and dispatch stations. When the products are heavy, oversized, irregularly shaped, or unsuitable for hanging conveyors, a reliable platform cart becomes an important part of the overall material-handling system.
A platform cart is a mobile industrial truck consisting of a load-bearing platform, a reinforced frame, casters, and, where required, a handle, locking device, or customized positioning structure. It provides a stable surface for transporting components, pallets, molds, cartons, workpieces, and finished products. Depending on the design, it can support loads from approximately 500 kg to 5,000 kg and can be configured for different floor conditions, operating environments, and production layouts.
For coating and surface-treatment applications, the cart must do more than simply carry weight. It should move smoothly, remain stable when loaded, resist corrosion caused by moisture and chemicals, protect finished surfaces from scratches, and fit naturally into the workshop’s production sequence. A well-designed cart can also supplement an automated conveyor system by handling products that require flexible routing or temporary staging.
Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd. develops customized industrial handling equipment as part of its wider coating production line and environmental equipment capabilities. With a manufacturing area of approximately 35,000 square meters, registered capital of 58 million yuan, and more than 40 years of industry experience, the company combines equipment engineering, fabrication, surface treatment, installation, and service support. Its platform cart solutions are designed for factories that require dependable movement of heavy or awkwardly shaped products within coating, manufacturing, logistics, and warehouse operations.
Platform Cart

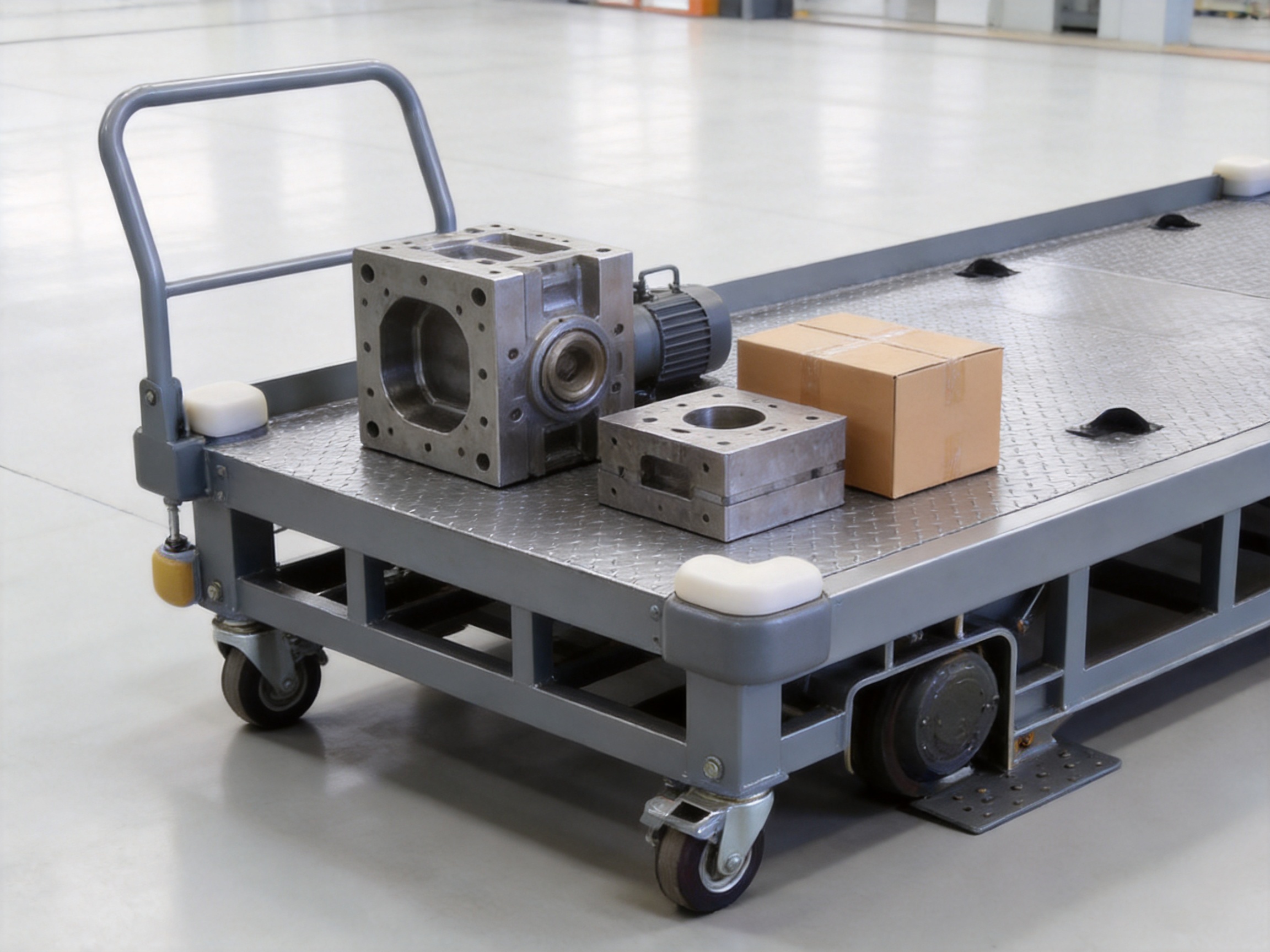

A platform cart is a flatbed industrial transport unit designed to move materials across a workshop, warehouse, factory, or logistics center. Unlike a standard hand trolley with a narrow body or a small warehouse cart intended for light packages, a heavy-duty platform cart uses a broad, reinforced platform that distributes the load over a larger area. This makes it suitable for bulky workpieces, production fixtures, material boxes, molds, pallets, and other loads that cannot be easily carried by hand.
The basic design includes four main elements: the platform, the frame, the caster system, and the operating handle or push structure. The platform supports the load. The frame transfers the load toward the casters and prevents excessive deformation. The casters provide movement and steering, while the handle gives the operator a comfortable and controlled way to push or pull the cart.
Different operating conditions require different configurations. Fixed casters can help the cart travel in a straight direction. Swivel casters allow flexible steering in confined areas. Brake casters keep the cart stationary during loading, unloading, inspection, or temporary processing. A combination of swivel and fixed casters may provide both directional stability and maneuverability.
The platform surface can also be adapted to the application. A standard steel platform may be suitable for general industrial handling, while an anti-slip, wear-resistant, corrosion-resistant, or non-marring surface may be preferred for coating workshops. Finished parts may require a surface that minimizes contact marks, scratches, or contamination. Heavy steel components may require reinforced supports beneath the platform to prevent deflection under concentrated loads.
Coating production often involves several sequential operations. A typical workflow may include loading, grinding, shot blasting, cleaning, pretreatment, drying, masking, primer application, topcoat application, curing, inspection, repair, packing, and storage. A fixed conveyor is highly effective when the product size, movement direction, and production volume remain consistent. However, not every workpiece can be placed on a hanging conveyor or moved along a permanent track.

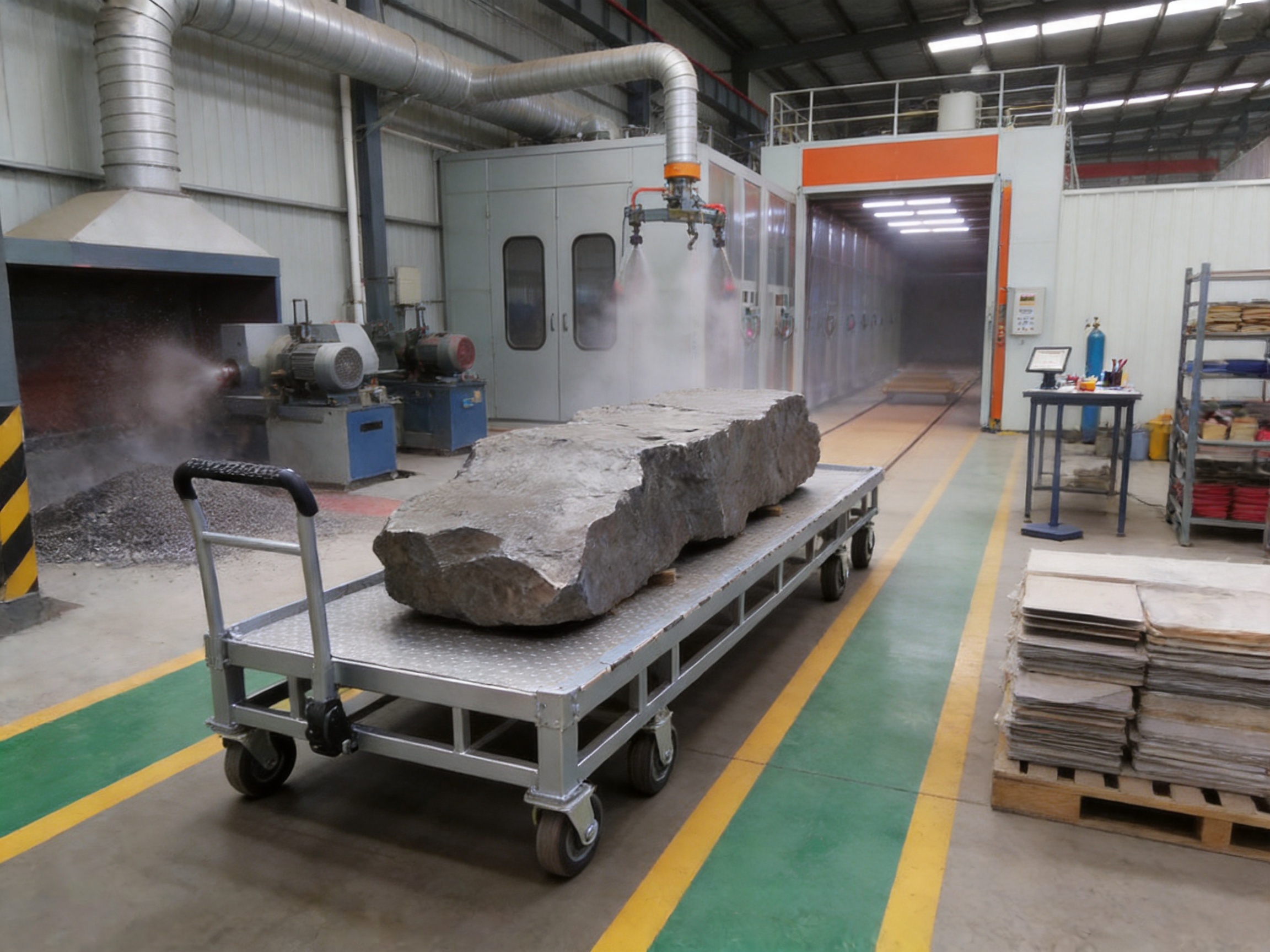

Large counterweight blocks, machine frames, metal cabinets, construction components, irregular castings, and oversized fabricated parts may require support from below. Some products may need to remain on a fixture during several steps. Other products may be routed to different spray booths or curing areas depending on their coating specification. A platform cart provides a practical method for moving these loads without requiring a permanent conveyor path for every possible route.

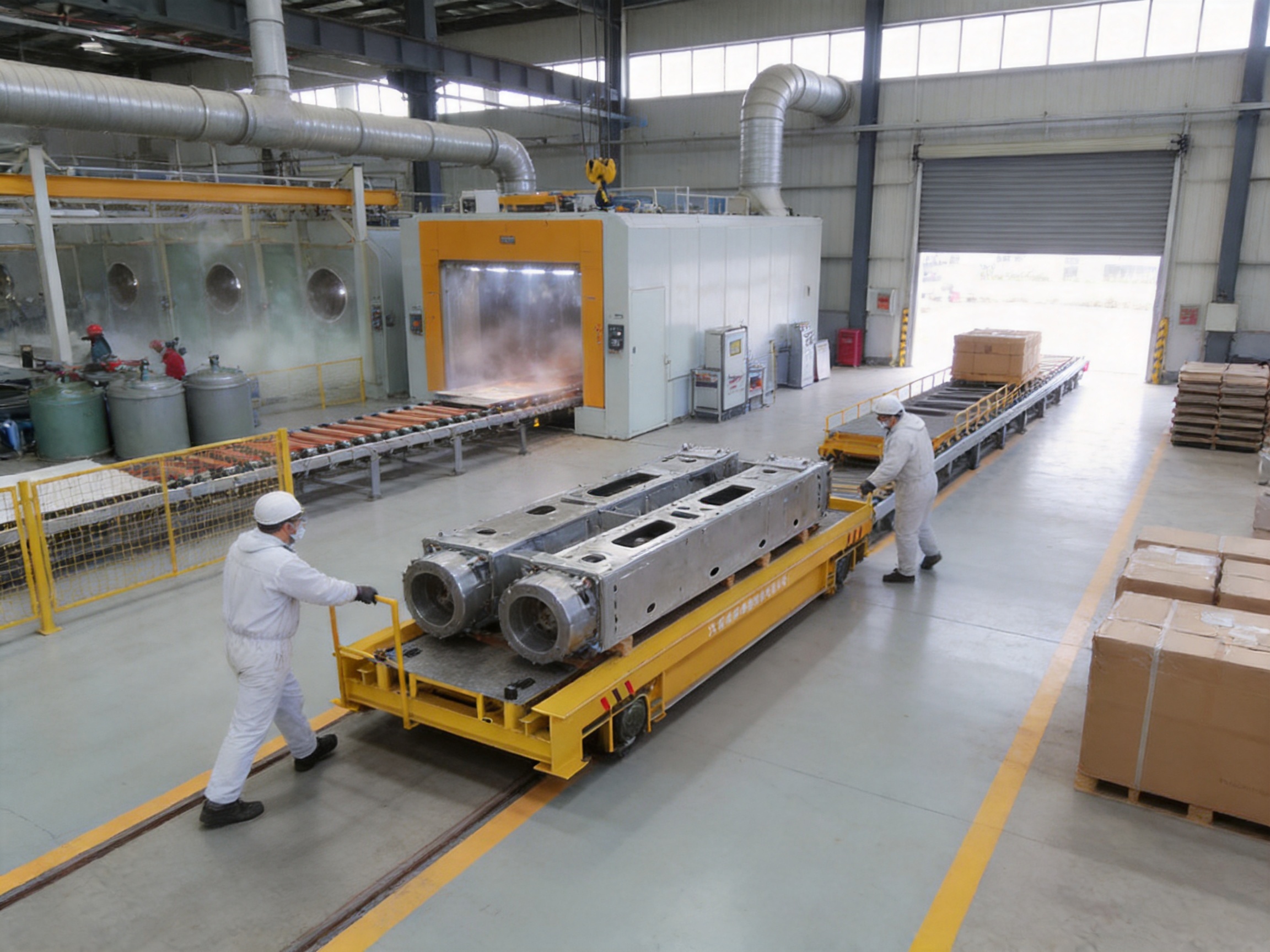

In a coating workshop, the cart can be used to transfer workpieces between preparation and coating stations, deliver parts to a temporary staging area, move coated components toward inspection, or collect finished products for packaging. It can also support production changes when a new product model is introduced or when the workshop layout is reorganized.
Compared with manual carrying, a platform cart reduces the need for workers to lift heavy or awkward products. The load remains supported on the platform during movement, reducing the risk of dropping parts, damaging surfaces, or causing unnecessary physical strain. Compared with a fixed conveyor, the cart provides greater routing flexibility and usually requires less permanent infrastructure.
The most effective material-handling strategy may combine both systems. Automated conveyors can carry regularly scheduled products through the main production route, while platform carts handle large, irregular, low-volume, or exceptional items. This combination allows a workshop to improve efficiency without forcing every product into a single handling method.
The main advantage of a heavy-duty platform cart is its ability to support substantial loads while maintaining structural stability. Yue Ze platform carts use a thickened steel frame and integrated welding methods to create a strong load-bearing structure. The frame is designed to distribute force across the platform and toward the caster assemblies, reducing the risk of local deformation.
Load capacities can be configured according to the application, with typical options ranging from 500 kg to 5,000 kg. The correct rating depends on several factors, including the total product weight, load distribution, center of gravity, movement frequency, floor condition, caster rating, and whether the cart will be pushed manually or moved by another handling device.
A reinforced frame is particularly important when a product has a concentrated load. A mold, motor, casting, or counterweight block may place high pressure on only a small part of the platform. If the support structure is undersized, repeated loading can cause deflection, weld fatigue, or permanent deformation. A properly engineered cart uses suitable steel sections, platform thickness, support spacing, and caster positioning to handle these conditions more reliably.
A broad, flat platform allows products to rest securely without requiring complex lifting equipment for every movement. Even force distribution helps reduce instability during pushing, pulling, turning, and stopping. The design can also accommodate pallets, boxes, fixtures, and multiple smaller components.
For irregular workpieces, additional positioning features can be incorporated. These may include side stops, removable supports, guide rails, locating blocks, or custom fixtures. Such options help prevent a workpiece from sliding or shifting, especially when the floor contains minor unevenness or when the cart must pass through a turning area.
Stable load distribution benefits both safety and product quality. It reduces the possibility of collision with walls, equipment, or nearby workers, while also helping protect freshly coated surfaces from contact damage. When a cart is used for finished products, the platform and any supporting fixtures can be designed to avoid contact with critical painted areas.
Unlike a cart that follows a dedicated track, a platform cart can move along the available workshop floor. This flexibility is valuable where production routes change frequently or where the facility handles multiple product types. Operators can move the cart between adjacent workstations, position it close to a spray booth, or direct it to a temporary storage zone without changing the permanent layout.
High-quality silent swivel casters support smooth steering and reduce operating noise. Fixed casters can be used where straight-line movement is preferred, while swivel and brake configurations can provide maneuverability and secure positioning. Caster selection should be matched to the cart load, floor material, turning radius, and expected operating frequency.
Flexible movement also helps reduce unnecessary handling. Instead of transferring a workpiece from one small trolley to another, the same platform cart can remain with the load through several stages. Fewer transfers may mean fewer opportunities for scratches, impact, misalignment, and operator injury.
Brake casters are available for applications in which the cart must remain stationary during loading, unloading, inspection, or temporary processing. A brake helps prevent unintended movement when the workshop floor has a slight gradient or when an operator is positioning a heavy part.
For more demanding applications, a project-specific locking or positioning arrangement may be added. The appropriate solution depends on whether the cart is used only for transportation or whether it will support work while stationary. A transport cart should not automatically be treated as a lifting platform or a permanent process fixture unless it has been specifically engineered for that purpose.
The handrail is another important safety feature. A heightened, non-slip handrail gives the operator a stable grip and helps maintain control while pushing or pulling. Rounded edges and anti-collision details can reduce the risk of injury or damage to nearby walls and equipment.
The surface of a platform cart is exposed to repeated loading, sliding, impact, dust, moisture, and industrial contaminants. Yue Ze carts can be configured with surfaces that are anti-slip, wear-resistant, corrosion-resistant, or suitable for protecting finished products.
An anti-slip surface can improve load stability during movement. A wear-resistant surface helps extend service life when metal parts, boxes, or fixtures are loaded repeatedly. A non-marring surface can be selected when the cart is used to transport coated or polished components. The correct surface material should be chosen according to the part finish, cleaning chemicals, temperature, and possible contact with coating materials.
For coating workshops, contamination control is especially important. Loose particles, rust flakes, or residues on the platform may affect freshly painted components. A smooth, easy-to-clean surface and a durable protective finish can help maintain cleaner handling conditions.
Coating environments may contain water, pretreatment chemicals, cleaning agents, paint residues, overspray, and humid air. A basic untreated steel trolley may gradually develop corrosion under these conditions. Corrosion can weaken structural areas, affect caster movement, contaminate workpieces, and increase maintenance requirements.
Platform carts can be finished with electrostatic powder spraying or galvanized treatment, depending on the application. These finishes improve resistance to rust and surface deterioration. The selection should consider whether the cart operates inside a dry warehouse, near a pretreatment line, in a humid workshop, or in an area exposed to chemical cleaning.
Corrosion resistance does not eliminate the need for maintenance. Operators should clean deposits, inspect damaged coating areas, check welds and fasteners, and lubricate or replace casters when necessary. However, a suitable protective finish can significantly reduce the frequency and severity of routine maintenance.
Many low-cost carts appear similar at first glance, but their actual performance depends on structural details that are not always visible. A professional industrial cart should be evaluated by its load rating, frame design, welding quality, caster selection, platform finish, safety features, and suitability for the intended workflow.
Integrated welding creates a unified frame instead of relying only on lightly connected components. Correct welding procedures help improve rigidity and reduce movement between structural members. After fabrication, important areas should be inspected for visible defects, incomplete joints, excessive spatter, distortion, and dimensional errors.
The frame must also be sufficiently rigid without adding unnecessary weight. Excessive material can make a cart difficult to move, while insufficient reinforcement can cause structural problems. The balance between strength, weight, maneuverability, and manufacturing cost is an important part of engineering design.
Casters are not merely accessories. They are load-bearing components that directly influence safety and ease of operation. A caster rating must account for the cart’s own weight, the product load, uneven load distribution, shock loads, and the number of casters that may effectively carry weight while the cart is moving.
Wheel material should match the workshop floor. Different wheel constructions may be appropriate for concrete, epoxy-coated floors, metal surfaces, or areas where noise reduction is important. Wheel diameter also affects rolling resistance and the ability to pass over small floor joints or surface irregularities.
Swivel casters provide turning flexibility, but a cart with too many unrestricted swivel points may be difficult to control under a very heavy load. Fixed and swivel caster combinations should therefore be selected according to the desired movement pattern rather than simply maximizing maneuverability.
An ergonomic handle improves operator control and reduces the force required to start, stop, and steer the cart. The handle should be positioned at a practical height, provide a secure grip, and avoid sharp edges. A non-slip treatment is useful in environments where gloves, dust, or moisture may affect hand contact.
For very heavy loads, operators may use powered assistance, a tugger, a forklift, or another mechanical device. In such cases, the cart can be configured with suitable connection points or a design that allows safe engagement by the selected handling equipment. The correct method depends on the application and should be confirmed during project planning.
Workshop aisles can be busy, and carts may pass close to booths, columns, storage racks, and other equipment. Edge protection, rounded corners, bumpers, and other anti-collision details can help protect the cart, the facility, and the people working nearby.
These features are especially useful when the cart carries a large part that extends beyond the platform. The load should be positioned and secured so that it does not create an unexpected collision hazard. A custom cart may include protective frames or designated support areas to control the overall load envelope.
One of the main strengths of a custom platform cart is that its dimensions and functions can be adapted to the product and production route. Standard catalog dimensions may be suitable for general warehouse use, but coating workshops often handle parts with unusual dimensions or special surface requirements.
The platform can be designed to match the length, width, and footprint of the workpiece. A platform that is too small may allow the load to overhang excessively, while a platform that is unnecessarily large may restrict aisle movement and turning. The ideal size supports the product securely while preserving adequate clearance around equipment and walkways.
Special shapes may be considered when handling long sections, cylindrical components, frames, or assemblies with a low center of gravity. The platform may also include removable extensions if the facility handles products of different sizes.
Capacity should be specified using the maximum expected load rather than the average load. Engineers should consider the heaviest product, accessories, fixtures, packaging, and any dynamic force created during movement. If the cart will operate frequently or over long distances, a suitable safety margin is important.
Load capacity also depends on how the weight is distributed. A centered, evenly distributed load is easier to support than a concentrated load near one edge. For this reason, the frame, platform reinforcement, and caster arrangement should be designed together rather than selected separately.
A fixed platform cart is suitable for frequent transport of heavy products and can provide maximum structural simplicity. A folding platform truck may be useful where storage space is limited or where the cart must be returned empty through a narrow area. Folding handles can reduce the required storage footprint.
Double-layer and multi-layer options can increase the usable carrying area for smaller parts, boxes, tools, or material containers. These configurations should be used only when the added height does not compromise stability or obstruct the operator’s view. Heavy or high-center-of-gravity loads normally require a lower platform arrangement.
Surface selection should be based on the relationship between the platform and the product. An anti-slip surface may be preferred for raw metal components. A softer or non-marring surface may be selected for finished parts. A corrosion-resistant treatment may be required in humid or chemically active zones.
Electrostatic spraying and galvanized finishes are available according to environmental requirements. The finish can also be coordinated with the company’s wider coating equipment and workshop standards. Easy-clean construction is valuable because it helps remove dust, overspray, and debris before the cart is reused.
Generic light-duty trolleys are often designed for cartons, tools, or small materials. Their frames and casters may not be suitable for heavy industrial workpieces. When overloaded, they can become difficult to steer, suffer from caster failure, or develop platform deformation. A heavy-duty platform cart is engineered for a defined load range and a more demanding operating environment.
Compared with narrow hand trucks, platform carts offer a larger supporting area and better accommodation for bulky products. A hand truck may be useful for vertical loads against a backrest, but it is not always appropriate for a freshly coated component that must remain horizontal or must be supported at several points.
Compared with a permanently installed conveyor, a platform cart provides greater flexibility and typically involves less fixed construction. A conveyor may be more efficient for high-volume repetitive production, but it may require dedicated tracks, transfer units, control systems, and layout changes when product dimensions or routes change. The platform cart is therefore a valuable complement where flexibility is a priority.
Compared with improvised steel frames or locally fabricated trolleys, a professionally engineered cart offers clearer load specifications, more consistent fabrication, more suitable caster selection, better surface treatment, and stronger support for customization. These factors can influence the total cost of ownership because a durable cart may require fewer repairs and replacements over its service life.
| Handling Solution | Main Strength | Typical Limitation | Best Application |
|---|---|---|---|
| Heavy-duty platform cart | Flexible movement and strong load support | Requires floor access and operator control | Oversized, irregular, or varied workpieces |
| Fixed conveyor | Efficient repeated movement along a defined route | Less flexible when the layout or product changes | High-volume standardized production |
| Light-duty trolley | Low initial cost and easy handling | Limited capacity and durability | Small packages and light materials |
| Forklift | High lifting capacity and vertical handling | Requires trained operators and clear operating space | Palletized loads and elevated storage |
| Manual carrying | No equipment investment | High physical strain and handling risk | Very light parts over short distances |
The performance of a platform cart depends on the quality of its manufacturing process. A strong concept can still fail if the steel is poorly prepared, welds are inconsistent, dimensions are inaccurate, or the protective coating is not properly applied. Yue Ze Environmental Protection Equipment Co., Ltd. integrates design, manufacturing, installation, and customized engineering support to provide a more complete equipment solution.
The company’s experience extends beyond standalone handling products. Its broader equipment portfolio includes powder coating lines, electric vehicle assembly lines, automotive counterweight spray lines, paint and bake booths, large-part grinding rooms, waste gas treatment systems, infrared radiation drying systems, automated conveying systems, intelligent coating lines, and other environmental protection equipment.
This background is valuable when designing carts for coating workshops because the cart must work in relation to the entire process. Its dimensions may need to match booth entrances, drying areas, transfer points, aisle widths, inspection stations, or conveyor interfaces. Its surface finish may need to be compatible with the coating environment. Its load capacity may depend on the mass of castings, fixtures, or counterweight blocks used in the production line.
The company also pioneered a hanging automatic painting process line for casting counterweight blocks in 2014. That project covered processes from finishing and polishing to primer and topcoat application. Experience with such complete processes provides a practical understanding of how heavy industrial products are prepared, moved, coated, dried, inspected, and transferred through a production environment.
Platform cart production begins with material selection and preparation. Steel sections, plates, pipes, caster supports, handles, and other components should be selected according to the required capacity and operating environment. Cutting and forming must maintain dimensional accuracy so that the platform remains level and the caster assemblies align correctly.
After preparation, the frame is assembled and welded. Welding sequence is important because heat can produce distortion if it is not controlled. A properly planned sequence helps preserve squareness, platform flatness, and caster alignment. Reinforcement members are positioned according to the expected load pattern, with attention to areas that experience concentrated forces.
Once fabrication is complete, the cart can undergo dimensional checks and visual quality inspection. Critical points may include platform flatness, frame squareness, handle alignment, weld appearance, caster mounting, brake operation, and the absence of sharp edges that could damage operators or products.
Surface treatment contributes to both appearance and service life. Before electrostatic spraying or galvanizing, the steel should be properly cleaned and prepared. Removing oil, dust, scale, and loose contaminants helps the protective finish adhere more effectively.
Electrostatic powder spraying provides a durable industrial finish that can improve resistance to abrasion, moisture, and ordinary workshop contamination. Galvanized treatment may be considered where enhanced corrosion resistance is needed. The final choice depends on the environment, cleaning method, exposure level, and customer requirements.
Because Yue Ze also manufactures coating and environmental protection equipment, its production capabilities are aligned with industrial surface treatment requirements. This allows customers to coordinate the cart’s finish with other equipment supplied for the same project, supporting a more consistent workshop standard.
Custom equipment requires communication between the user and the manufacturer. Important information includes product dimensions, maximum weight, center of gravity, lifting points, surface sensitivity, travel distance, floor conditions, aisle width, turning space, operating temperature, chemical exposure, and storage requirements.
Based on these factors, the manufacturer can recommend platform dimensions, structural reinforcement, caster type, brake arrangement, handle configuration, surface material, and optional positioning features. If the cart will operate beside an automated conveyor or coating line, the design can be reviewed together with the surrounding equipment.
Yue Ze provides integrated research and development, manufacturing, installation, and customized equipment solutions. This one-stop capability can simplify project coordination, particularly for customers developing a complete coating workshop rather than purchasing a standalone trolley. The company’s engineering team can consider material handling together with spraying, drying, exhaust treatment, environmental compliance, and production flow.
During the preparation stage, the cart can receive raw or semi-finished components after grinding, shot blasting, or cleaning. A suitable platform surface helps keep the component stable while it is transferred toward pretreatment or masking. If the product is dusty, the cart should be cleaned before it enters a clean coating area.
At the spraying stage, the cart may be used for parts that cannot be placed on a standard hanger. The operator can position the workpiece near a paint booth, move it out after spraying, and transfer it to a curing or drying area. For some applications, a custom fixture on the platform may help expose the required surfaces while preserving safe support.
During drying or curing, the cart configuration must be reviewed carefully. Not every caster, handle, wheel, or surface material is suitable for elevated temperatures. If the cart enters an oven or infrared drying zone, the design must be specifically evaluated for temperature exposure, thermal expansion, finish performance, and safe operation. In many cases, the cart is used to move products to the oven entrance rather than entering the oven itself.
After curing, the cart can support inspection and repair operations. A stable platform gives inspectors a practical place to review coating coverage, surface defects, color uniformity, and dimensional details. If rework is required, the same cart can move the product back to the preparation or spraying area.
For finished products, a non-marring platform or removable protective layer may help prevent damage during internal transportation. The cart can then deliver products to packaging, temporary storage, loading, or the next assembly operation.
Although the platform cart is especially useful in coating production, its applications are much broader. In general manufacturing, it can transport work-in-process components, tools, molds, fixtures, and material containers. In warehouses, it can move cartons, pallets, and large packages over short or medium indoor distances.
In metal fabrication plants, the cart can carry welded frames, sheet-metal assemblies, structural sections, and components waiting for inspection. In machinery manufacturing, it can support motors, housings, machine bases, and parts awaiting assembly. In foundries, it may be used for castings and counterweight blocks, provided the temperature and surface conditions are appropriate.
In logistics centers, a platform cart can assist with order staging, internal transfer, and dispatch preparation. In maintenance departments, it can carry replacement parts and tools. In assembly operations, multi-layer versions can provide organized access to small components while a larger platform supports the main assembly.
The cart is also useful where a facility must periodically change its production layout. Seasonal production, new product development, trial production, and low-volume custom manufacturing all benefit from equipment that does not depend on a fixed route.
Begin with the largest and heaviest item that the cart will transport. Record its length, width, height, weight, support points, center of gravity, and surface sensitivity. Consider whether the load is rigid, flexible, liquid-filled, unstable, or likely to shift during movement.
Floor condition affects caster performance. Smooth epoxy floors may permit easy movement with suitable wheels, while rough concrete, expansion joints, ramps, or debris may require larger and more robust casters. The cart should be tested or evaluated for the narrowest passage, tightest turning point, and most difficult floor section.
Determine whether the cart will normally travel in straight lines, move in multiple directions, or turn within a restricted area. Fixed casters may be appropriate for a straight route. Swivel casters provide more flexible movement, and brake casters are recommended when stable parking is necessary.
Humidity, cleaning chemicals, paint overspray, dust, temperature, and outdoor exposure all affect material and finish selection. A cart used beside a pretreatment line may require stronger corrosion resistance than one used in a dry warehouse. A cart used with finished parts may require special surface protection to avoid marks.
The cart should not obstruct conveyors, booth doors, emergency exits, walkways, or forklift routes. Its overall height should allow operators to see around or over the load where possible. If it works with a conveyor, lift table, hoist, or forklift, the interface should be discussed during design.
| Selection Item | Questions to Confirm | Design Consideration |
|---|---|---|
| Load | What is the maximum total weight? | Frame, platform, and caster capacity |
| Dimensions | What are the largest product dimensions? | Platform size, clearance, and turning space |
| Surface | Can the product be scratched or marked? | Non-marring or protective platform material |
| Floor | Is the floor smooth, uneven, wet, or chemically exposed? | Wheel diameter, material, and corrosion resistance |
| Movement | Does the cart need straight travel or flexible steering? | Fixed, swivel, or combined caster arrangement |
| Parking | Must the cart remain stationary during work? | Brake casters or additional locking features |
| Storage | Is warehouse space limited? | Folding handle or compact configuration |
| Integration | Will the cart interface with other equipment? | Custom height, supports, stops, or connection points |
A platform cart should be inspected before regular use, particularly when it carries heavy or high-value components. Operators should check the platform for cracks, deformation, loose parts, damaged protective coating, and contamination. Welded joints and caster mounting plates deserve special attention.
Casters should rotate and swivel without excessive resistance. Brake mechanisms should engage securely and release fully. Wheels with flat spots, severe wear, cracks, or damaged bearings should be replaced. If one caster is replaced, the cart should be checked to ensure that the platform remains level and stable.
Loads should be placed near the center of the platform whenever possible. Heavy items should not be positioned near an unsupported edge. If a load is tall, narrow, or unstable, additional securing measures may be necessary. Operators should avoid sudden acceleration, abrupt turns, and excessive speed.
The cart should be used only within its specified capacity and operating conditions. A cart rated for 1,000 kg should not be treated as a 1,000 kg lifting device unless lifting functionality has been specifically designed and tested. Operators should also keep hands and feet clear of caster areas, corners, walls, and other pinch points.
In a coating workshop, overspray and chemical deposits should be removed before they accumulate. Cleaning methods should be compatible with the cart’s surface finish and any protective platform material. Damaged coating areas should be repaired when necessary to prevent corrosion from spreading.
Training is also important. Workers should understand how to use the brakes, how to position loads, how to push rather than pull where practical, and when mechanical assistance is required. Clear aisle markings and appropriate traffic management can further improve safety in facilities where carts operate alongside forklifts and conveyors.
Quality control for a platform cart should address both manufacturing quality and practical performance. Dimensional inspection verifies that the cart matches the approved design. Structural inspection verifies the condition of welded joints and reinforcement areas. Caster inspection confirms correct installation, smooth movement, and brake function.
Surface inspection evaluates coating coverage, adhesion appearance, sharp edges, exposed steel, and areas that may collect contaminants. Where the cart is intended for a chemical or humid environment, the protective finish should be selected and applied according to the expected exposure.
Before delivery, the manufacturer and customer may review the cart’s load rating, operating method, storage arrangement, and intended interface with other equipment. A practical trial with a representative load can identify turning, clearance, or stability issues before the cart enters full production.
For customized projects, documentation may include general arrangement drawings, load specifications, surface finish information, caster details, operating instructions, and maintenance recommendations. Clear documentation helps the customer integrate the cart into internal safety and equipment-management procedures.
A platform cart may appear to be a simple product, but its design becomes more demanding when it must operate as part of a complete coating production line. An experienced coating equipment manufacturer understands the relationships between workpiece dimensions, process timing, booth design, curing capacity, exhaust treatment, material flow, and operator access.
Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd. offers this broader perspective. The company’s capabilities include research and development, equipment manufacturing, installation, project coordination, and customized technical solutions. Its experience covers coating systems and environmental protection equipment, allowing it to consider both production efficiency and compliant industrial operation.
The company emphasizes strict quality control, advanced production technology, customer-focused service, integrity, green manufacturing, and global cooperation. These strengths are relevant to customers seeking more than a basic trolley. A cart should be dependable throughout its operating life, fit the facility’s workflow, and remain compatible with future changes in production.
Because the company supplies complete equipment solutions, it can also help customers determine whether a platform cart, conveyor, lift, fixture, or combination of systems is appropriate for a particular process. This prevents the common problem of selecting a handling product in isolation without considering the complete line.
The first stage of a custom project is application review. The customer provides information about the products to be transported, their maximum weight, dimensions, surface condition, movement route, operating frequency, and environmental exposure. Photos, drawings, or samples can help clarify the requirements.
The next stage is configuration. The manufacturer determines an appropriate platform size, frame structure, caster arrangement, handle design, brake system, surface material, and finish. If the cart must work with a coating line, the surrounding equipment and aisle layout should be considered at the same time.
After technical confirmation, manufacturing drawings and specifications can be reviewed. Fabrication then proceeds through material preparation, frame assembly, welding, finishing, component installation, inspection, and final testing. For larger projects, installation guidance or on-site support may be included.
After delivery, the customer should verify the cart under actual operating conditions. Any concerns related to floor clearance, load position, turning, storage, or workflow can be addressed through operating adjustments or, where necessary, design refinements.
Platform carts can be designed for different capacity ranges. The product information supports configurations from approximately 500 kg to 5,000 kg. The final capacity should be determined according to the heaviest load, load distribution, caster rating, floor conditions, movement method, and required safety margin.
Yes. A platform cart is especially useful for products that do not fit standard hanging conveyors or narrow trolleys. The platform size, support points, locating blocks, side stops, and protective surfaces can be customized to suit oversized or irregular workpieces.
Fixed casters are suitable for controlled straight-line travel. Swivel casters provide flexible steering in areas that require frequent direction changes. Brake casters are useful when the cart must remain stationary during loading, unloading, inspection, or staging. A combined configuration may provide a balance of control and maneuverability.
Yes, provided the cart is designed for the workshop environment. Important considerations include corrosion-resistant construction, a cleanable platform, suitable wheel materials, protection from overspray, and a surface that will not damage coated workpieces. If the cart enters a curing oven or high-temperature zone, thermal suitability must be confirmed separately.
Yes. Platform carts and fixed conveyors can complement one another. The conveyor can handle repetitive standard routes, while the cart can manage oversized parts, exceptional routes, temporary staging, or products that cannot be hung. The cart’s dimensions and height should be reviewed to ensure safe interaction with transfer points and aisles.
A non-marring or protective surface is generally preferred for finished products. The material should be selected according to the coating type, product temperature, surface hardness, cleaning requirements, and expected contact pressure. Removable protective pads may also be considered where products vary significantly.
Yes. Regular checks should include the frame, welds, platform, casters, wheels, brake mechanisms, handle, and protective finish. Dust, overspray, chemical residue, and debris should be removed. Damaged casters or corroded structural areas should be repaired or replaced before they affect safe operation.
Foldable configurations are available for applications where storage space is limited. A folding handle or folding platform arrangement can reduce the required storage area. The folding design must still provide adequate stability and load capacity for its intended use.
The calculation should include the cart’s own weight, the maximum product weight, fixtures, packaging, and possible dynamic forces during movement. The distribution of weight is also important. The caster system and frame should be selected together, and a suitable safety margin should be included.
Yes. Customization may include platform length and width, overall height, number of layers, handrail style, caster type, braking arrangement, surface treatment, protective edges, positioning supports, and connection features. Layout information helps the manufacturer ensure that the cart can pass through aisles and work with nearby equipment.
No. A platform cart and an automated conveyor serve different purposes. Conveyors are effective for stable, repetitive, high-volume routes, while platform carts are better suited to flexible, variable, oversized, or low-volume movement. Many factories achieve better overall efficiency by combining both solutions.
The customer should provide the product dimensions, maximum weight, center of gravity, surface sensitivity, required travel route, floor conditions, operating environment, desired platform size, preferred caster arrangement, storage needs, and any relationship with conveyors, booths, ovens, forklifts, or lifting equipment. Drawings and photographs are helpful for customized designs.
A platform cart is a practical and adaptable solution for moving heavy, oversized, irregular, or finished products through industrial facilities. Its value is especially clear in coating workshops, where workpieces must pass through several processes but may not always suit a fixed conveyor system. A reinforced steel frame, stable platform, suitable casters, braking options, corrosion-resistant finish, and ergonomic operating design allow the cart to support safer and more efficient material handling.
Compared with generic light-duty trolleys, a properly engineered heavy-duty platform cart provides greater load capacity, better structural stability, more suitable surface options, and stronger customization potential. Compared with a fixed conveyor, it offers routing flexibility and can adapt to changing production requirements. When used alongside automated conveying systems, it helps create a complete handling strategy for both standard and exceptional workpieces.
Jiangsu Yue Ze Environmental Protection Equipment Co., Ltd. brings more than four decades of coating and environmental equipment experience to the design and manufacture of customized handling solutions. Its integrated capabilities in engineering, fabrication, surface treatment, installation, and complete coating line development support customers that require dependable equipment rather than an isolated standard product.
For a platform cart to deliver its full benefit, the selection process should begin with the actual product, load, route, floor, environment, and workflow. When these factors are evaluated carefully, the result can be a durable and efficient industrial transport tool that reduces manual strain, protects workpieces, improves production flexibility, and supports the long-term development of the coating workshop.
1. Industrial Material Handling Equipment Design Principles, technical reference for platform structures, caster selection, load distribution, and workshop transportation.
2. Industrial Surface Treatment and Powder Coating Process Guidelines, reference for coating preparation, spraying, drying, curing, inspection, and finished-part handling.
3. Factory Layout and Internal Logistics Planning Practices, reference for aisle clearance, temporary staging, conveyor integration, and safe material flow.
4. Industrial Equipment Maintenance and Inspection Recommendations, reference for frame inspection, caster maintenance, brake checks, corrosion control, and safe operating procedures.
5. Manufacturer-provided product information for customized heavy-duty platform carts, coating production line equipment, automated conveying systems, and environmental protection equipment.
6. Company technical information concerning integrated research and development, manufacturing, installation, quality control, and customized industrial surface-treatment solutions.
